UI+

UI Shader for VRChat Worlds

Features

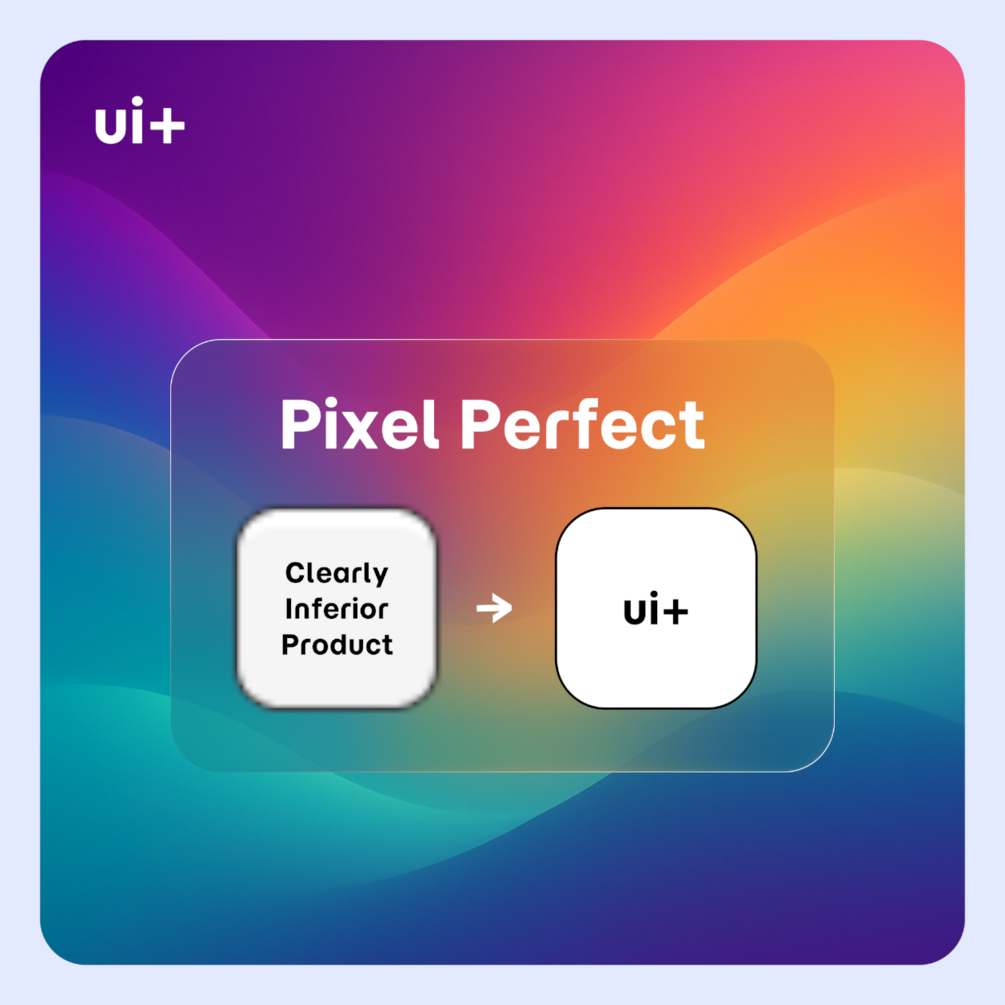

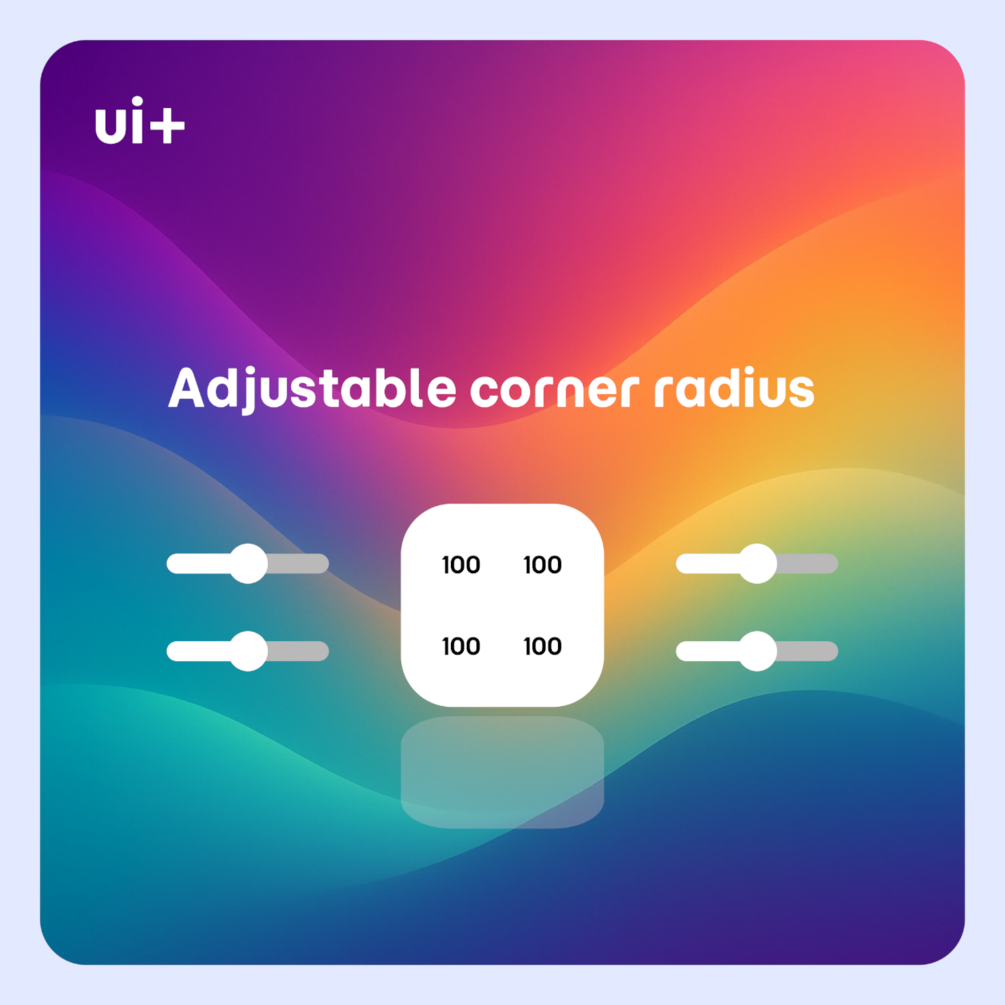

• Anti-Aliased rounded corners
• Border Width, Color and Blur

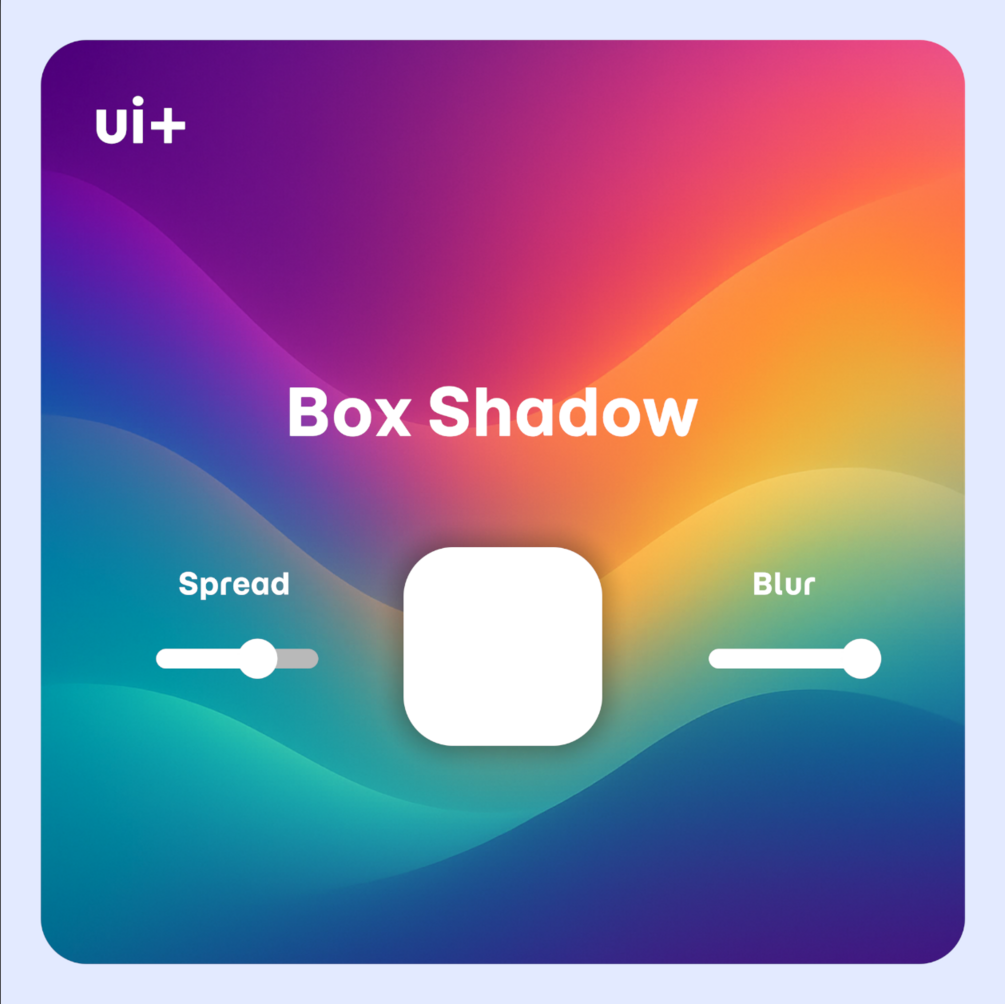

• Box Shadow Spread and Offset
• Refractive Glass (2 Modes - Static Texture or Grabpass)
• Multi-channel SDF Textures
• Super Sampling
• Gradient (Radial, Linear)
• Parallax Depth

Usage

• Create a new Material with the "UI+/Image" Shader
• Assign it an Image component on a Canvas
• Add Component PositionAsUV1 to the Image GameObject (Important)

For additional help reference the included sample scene

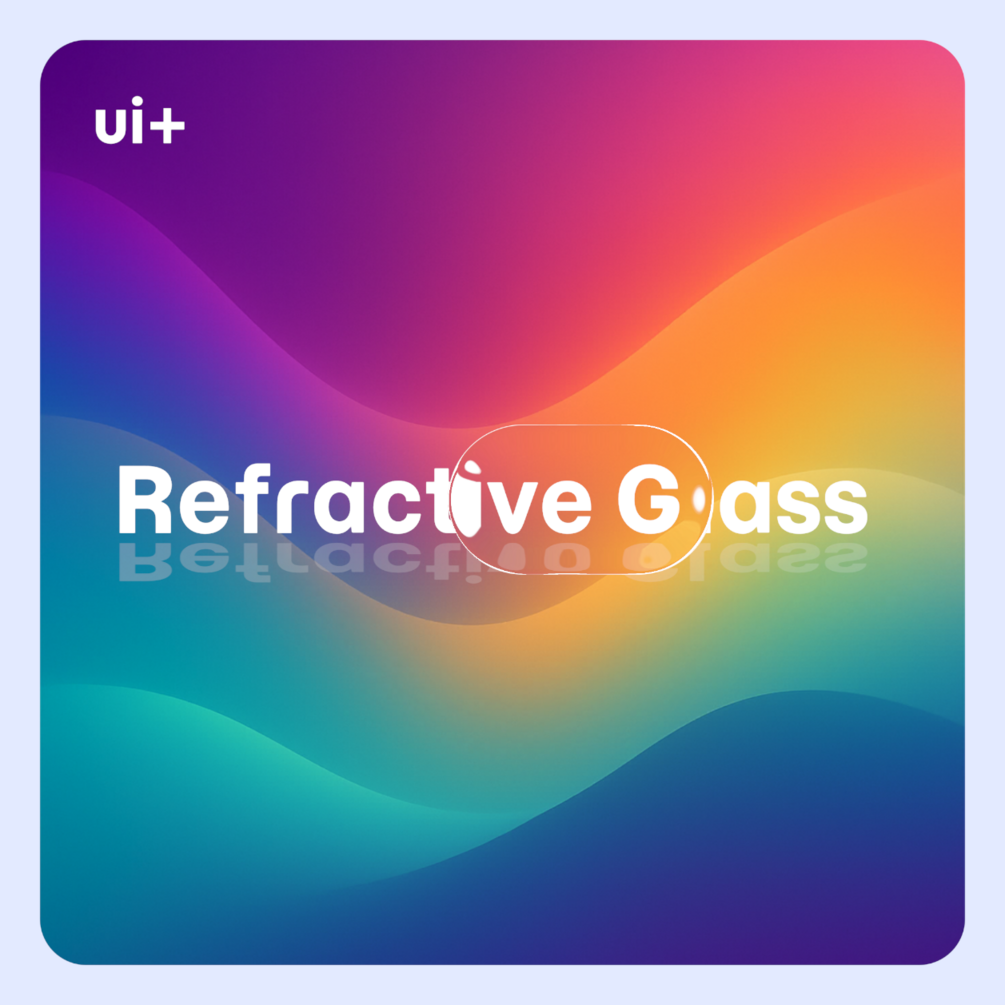

Refractive Glass

• Regular Mode (Recommended): Set a canvas background texture and adjust the canvas size (the image will cover the portion of the background where its positioned on the canvas)
• Grabpass Mode: Uses a Grabpass instead for the background (requires manually managing render queues, no blur option)
• Highlight rotation with the canvas transform

MSDF

• Supports MSDF textures generated with msdfgen
• Disable sRGB on MSDF textures and enable high quality (use the included texture importer preset)
• This allows sharper images with lower resolution (similar to TextMeshPro fonts but for an image)

Gradient

• Applies a gradient texture to the image, border or the shadow layer
• Radial and Linear UVs with rotation and tiling with time

Contents

• UI Shader for Canvas Image or RawImage components: "UI+/Image" and "UI+/Image Grabpass"

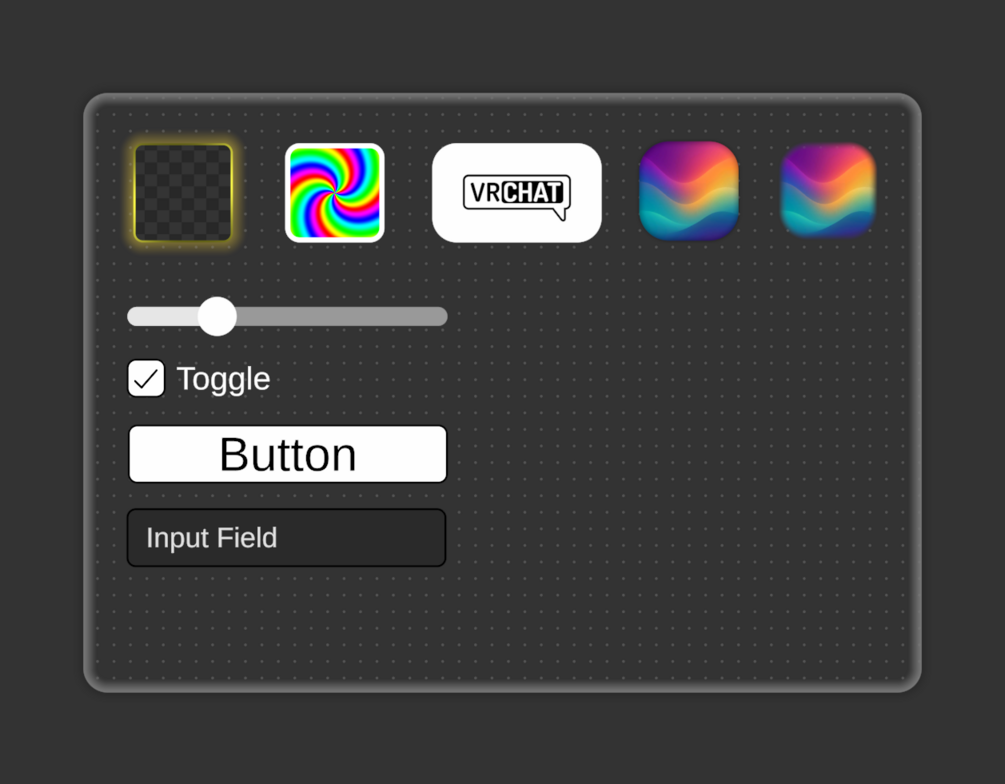

• Example Scene (all of the images were taken in Unity)

Additional Info

• Every Image requires a PositionAsUV1 component (Add Component -> UI -> Effects -> Position As UV1). This component sets additional vertex attributes that are required for certain shader features to work properly
• Additional shader channels TexCoord1, Normal, and Tangent are required on the Canvas component (On by default on VRChat UI)
• Shader is only meant for the UI (mesh renderers are not supported)
• The vertex color alpha has multiply all the individual layers in order for canvas group alpha to function. To keep borders, shadow and other layers visible use a transparent sprite instead or set the alpha on the material color property
• To only apply vertex colors (Image Component Color) to other layers like the shadow, border without affecting the image, disable image tint and enable tint on the specific layer
• The shader itself does not have any dependencies on VRChat itself and can be used in a standalone Unity application with the Built-In or Universal Render Pipeline as well (excluding the example scene), however theres better ways to do this with proper C# scripting
• Some effects automatically enable the rounded box SDF, the corner radius gets applied even if the border is disabled
• As an alternative to the PositionAsUV1 you can enable Sliced Mode and set the white-sliced-mode sprite to adjust the radius with a pixel pre unit multiplier on the image component, however it will behave differently as the additional vertex data is missing

Limitations

This shader was created with certain VRChat limitations, due to lack of full C# scripting:

• Only Image Type Simple is supported with borders/shadows, most the features were made to replace the need for sliced images. Sprite atlas is also still supported
• Changing the Rect Transform Pivot is not supported with all features (changing the pivot of a parent Rect Transform works however)
• The shadow feature does not work with non uniform transform scaling currently
• Wide shadow distance effects might have issues with culling and sorting (the mesh gets extruded)
• Managing the Render Queue can be harder with the Refractive Glass Grabpass shader
• An attempt was made to make the shader compatible with UI as much as possible, but I can not guarantee it works with every Unity feature

Prefabs using UI+

• https://github.com/z3y/ZPlayer

Changelog

[1.4.2] - 2025-12-4

• Applied texture aspect ratio to parallax to fix stretching

[1.4.1] - 2025-12-2

• Parallax depth for the background glass texture
• Tested and confirmed support in URP (Works in BasisVR)
• Fixed material color getting disabled when vertex color is disabled
• Added optional fog
• Added cull mode
• Added a special use case for sliced mode

[1.4.0] - 2025-11-27

• Glass highlight min max adjustment
• Border blur is now adjustable for glass and regular border
• Shadow fill toggle
• Added more samples
• Fixed sample incorrect TMP component

[1.3.1] - 2025-11-26

• Added glass highlight rotation

[1.3.0] - 2025-11-25

• Added parallax depth effect for the sprite texture
• Improved Anti-Aliasing
• Added Anti-Aliasing offset property which can help remove the gap between UI Images
• Invert corners toggle
• Scene with few more examples

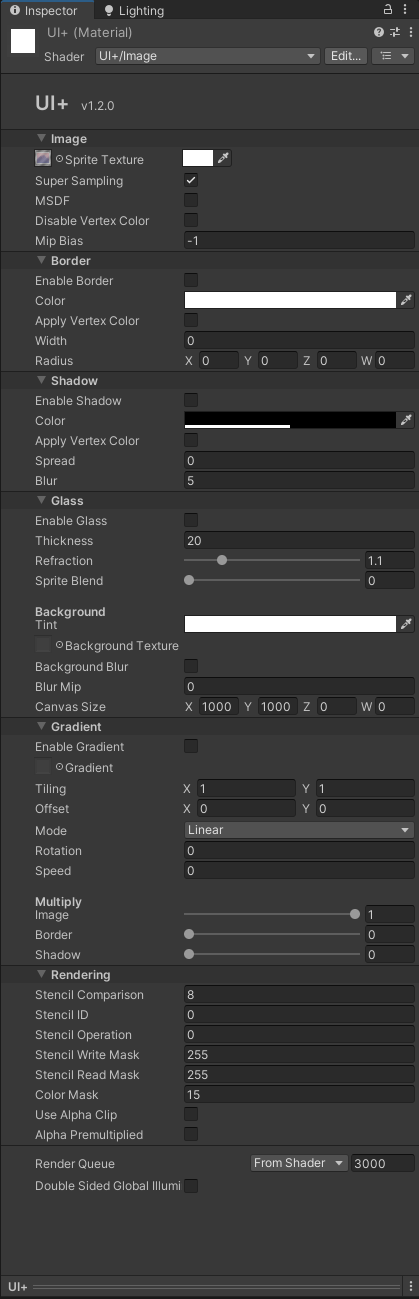

[1.2.0] - 2025-11-19

• New shader inspector
• Fix buttons for faster setup

[1.1.0] - 2025-11-18

• Added Gradients
• Fixed Shadow not working without borders enabled
• Added options to tint individual layers with vertex colors

[1.0.0] - 2025-11-11

• Initial Release

Example

Example VRChat World - https://vrchat.com/home/world/wrld_d86c4cca-1d13-49f6-af79-5ce997179a7c/info

Contact

https://discord.gg/bw46tKgRFT

Terms of use

You are permitted to use and modify the shader for public or private VRChat worlds, or any other Unity application, without including the shader source code.
